Characteristic emission lines of the elements

This section summarizes summarizes the characteristic x-ray fluorescence emission energies of the elements.

A more thorough summary can be found in the "X-ray Data Booklet" Pub-490 Rev. 2, from the Technical Information Department, Lawrence Berkeley Laboratory, 1 Cyclotron Road, Berkeley, California 94720. For a more complete reference, see the CRC "Handbook for Physics and Chemistry".

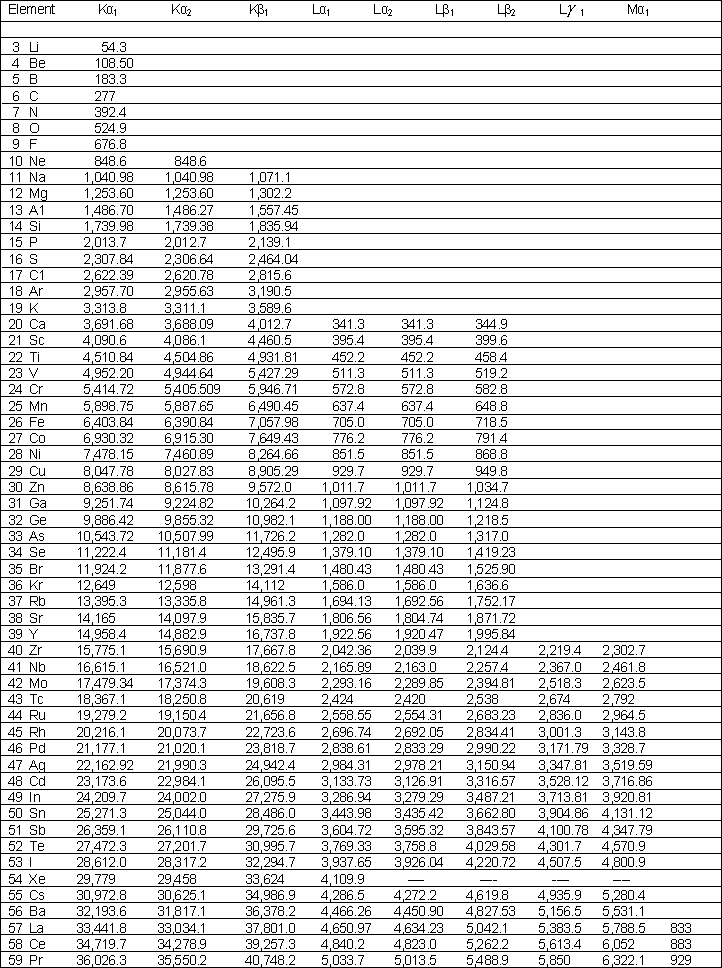

character emission energies elements 1

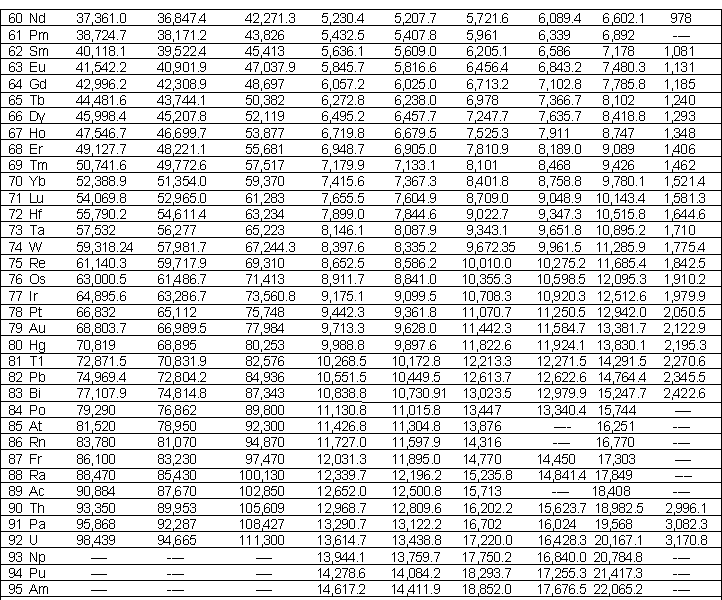

character emission energies elements 2
